Routine Maintenance Permanent Life Stainless Steel 2500kw Francis Turbine For HPP Equipment

Our main HPP products included:

1.Hydro Kaplan turbine generators series.

2.Hydro Turgo turbine generators series,e.g. vertical type horizontal type.

3.Hydro Tubular turbine generators series ,e.g. Bulb type and shaft extension type.

4. Hydro Francis turbine generators series.

5.Hydro Pelton turbine generators series and double turbine generators series and so on.

6.Other auxiliary equipment for hydropower station, such as generator, hydro turbine ,control panel, governor, valve, transformer, automatic electrical equipment, electricity meter, pressure tube, etc

Product features :

Francis turbines can be designed for a variety of heads and flows. Coupled with its high efficiency, it has become the most widely used turbine in the world. In contrast to Pelton turbines, Francis turbines are always in the best condition of being filled with water. Turbines and outlet channels can be placed below external lakes or sea levels to reduce the tendency for cavitation.

In addition to electricity production, they can also be used for pumped storage. During low power demand, the water tank is filled by a turbine (acting as a pump), the turbine is driven by a generator, and the generator acts as a large electric motor, and then reversed to generate electricity during peak demand . These pump storage pools act as large energy storage sources, storing "excess" electrical energy in the form of water in elevated storage tanks.

Product parameters:

Product pictuers:

The 2500kw Francis turbine generator is directly or indirectly driven by the hydro-wheel. The rotating speed of horizontal and

vertical arrangement is less than 1500r / min. The excitation modes are brushless and static silicon types.

Components include stator, rotor, chassis, bearings, field motor or slip ring. The output voltage is 380V to 30KV, the frequency

is 50Hz or 60Hz, and the output power is 50Kw to 50Mw. Our Francis turbine generators are efficient, reliable, and manufactured

and tested in compliance with relevant IEC standards.

Installation design drawings:

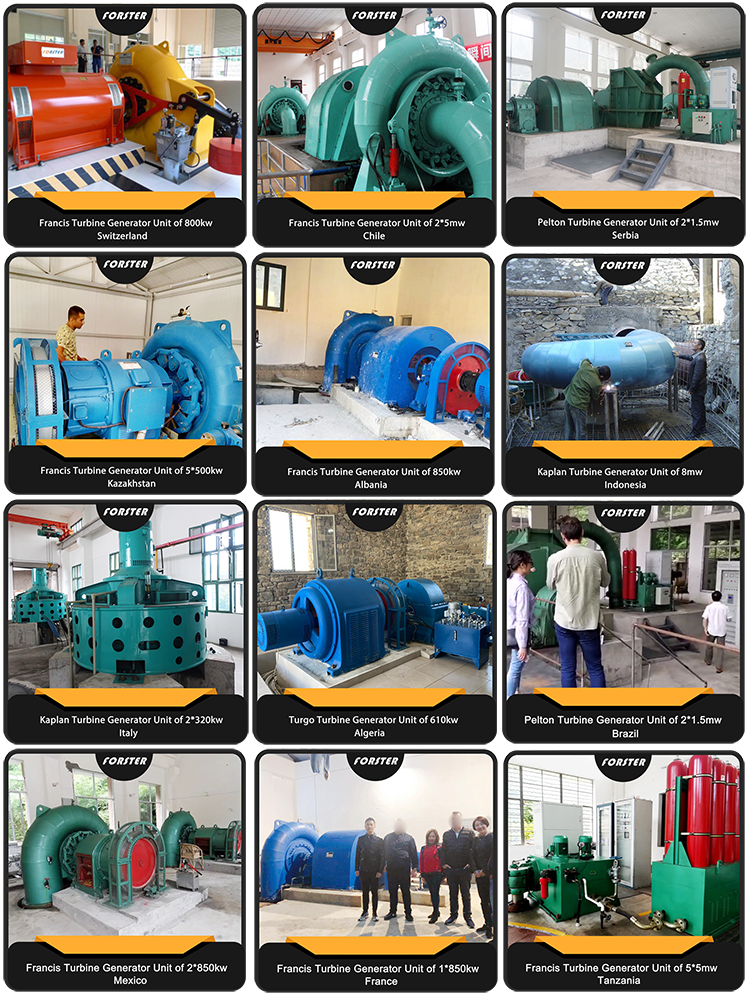

Chengdu Forster Technology is focused on design and manufacturing hydro turbines. The company was founded in 1956. Forster is the first Chinese state-owned enterprise and spares no effort to expand international market in 2013，At present, we have obtained orders in many water-rich areas such as Europe, Asia, South America, North America, etc., and as partners, we are qualified as long-term suppliers in many regions.

The capacity of hydro turbines is up to 50KW-30MW for a unit. The main hydro turbines areTurgo turbine ,pelton turbines, francis turbines, kaplan turbines ,bulb tubular turbines and other types of turbines.Foster also supplies governors, valves, transformers, monitoring systems, microcomputer integrated control panels and other equipment for hydroelectric power plants.

Forster is strict to IEC international standard and national standard. It has CE,ISO,TUV,certificate. The hydro turbines have different types, specifications and reliable quality with characteristics of reasonable structure, reliable operation, high efficiency, standardized parts ,convenient maintenance.

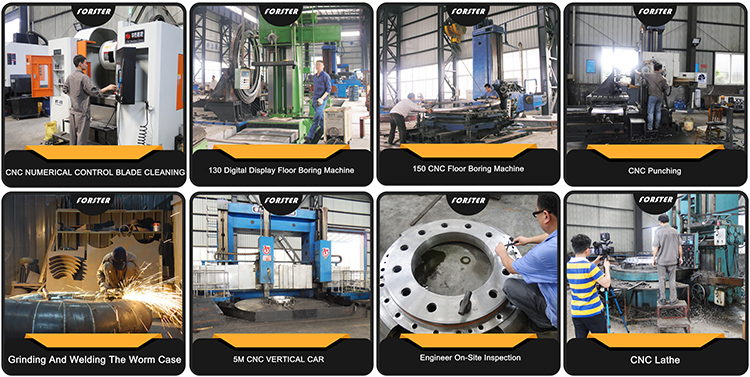

After obtaining the certification of IS09001/2000 quality management system, we still adhere to the rigorous work style formed in the turbine industry for many years, constantly and independently improve and perfect the management system of the enterprise, cherish and value the rich experience accumulated in the turbine production for decades, and constantly increase the technical force and Equipment input, focusing on the production, manufacture and installation of hydro-generator set equipment, auxiliary equipment of power station, production and manufacture of over-current components, repair and Capacity Upgrading of various power plant.

Forster always provides technical advice, services and the best technical solutions to customers based on their parameters. At the same time, it keeps offering after sale service for our product.

We always adhere to the principle of honesty and pragmatism, quality first, will be broad-minded, the attitude of life into our work, and strive to create a win-win situation for customers, enterprises and society. In the fierce market competition, we have always adhered to the details of success or failure, focusing on the achievement of excellence in the spirit of enterprise. In the friendly cooperation with customers at home and abroad, we have been pursuing the business philosophy of creating maximum value for customers.
