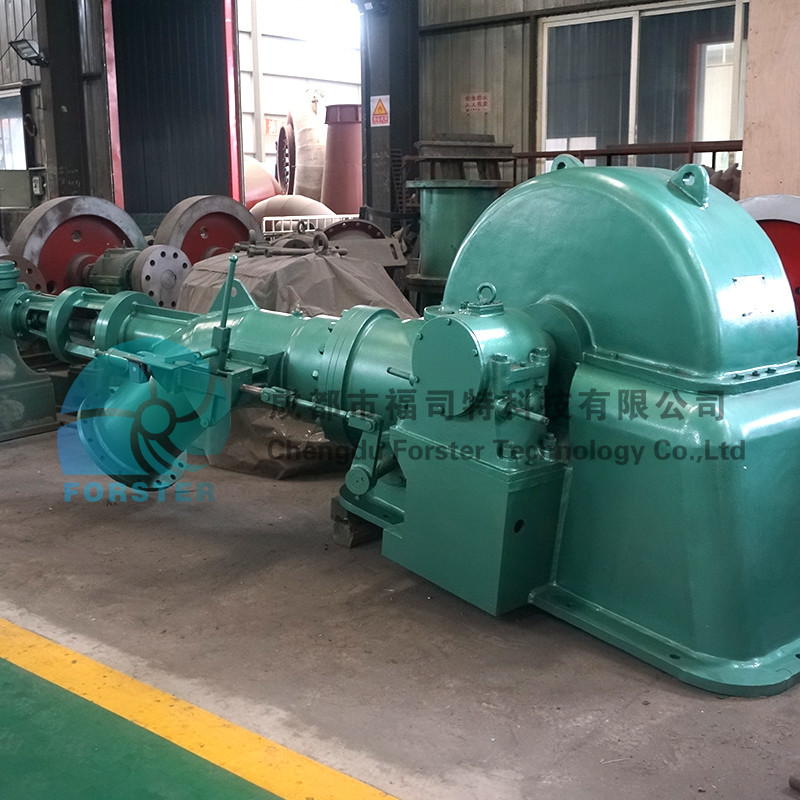

Vortex Hydro Turbine Turgo Water Powered Generator Price With Stainless Runner

The Turgo turbine is an impulse turbine, and can handle flow rates that are higher than those a Pelton turbine can handle. This ability to deal better with large volumes of water gives the Turgo turbine an advantage when used in hydroelectric plants that have medium hydraulic heads. Although they are better able to deal with high flow rates, Turgo turbines are slightly less efficient.

Since the runners on these turbines are smaller and faster spinning, some Turgo turbines can be connected directly to a generator instead of having to use a speed-increasing transmission.

In a Turgo, the runner is less expensive to make than a Pelton Wheel and does not need an airtight housing like the Francis. It also has a higher specific speed, handling a greater flow than the Pelton Wheel. This leads to a reduced generator and installation cost. Turgos operate in a head range where the Francis and Pelton overlap.

Working Principle

When water flows from the pressure foray into the turbine nozzle through pipe, its potential energy is converted to kinetic energy by the nozzle. The high speed water jet comes out from the nozzle strikes at the buckets (blades) at a certain angle (not in a tangential direction) against the rotating surface of the runner. The water flows into the propeller (turbine runner) from one side and flows out from other side.

Water Turgo Turbine Generator Product parameters

Chengdu Forster Technology is focused on design and manufacturing hydro turbines. The company was founded in 1956. Forster is the first Chinese state-owned enterprise and spares no effort to expand international market in 2013，At present, we have obtained orders in many water-rich areas such as Europe, Asia, South America, North America, etc., and as partners, we are qualified as long-term suppliers in many regions.

The capacity of hydro turbines is up to 50KW-30MW for a unit. The main hydro turbines areTurgo turbine ,pelton turbines, francis turbines, kaplan turbines ,bulb tubular turbines and other types of turbines.Foster also supplies governors, valves, transformers, monitoring systems, microcomputer integrated control panels and other equipment for hydroelectric power plants.

Forster is strict to IEC international standard and national standard. It has CE,ISO,TUV,certificate. The hydro turbines have different types, specifications and reliable quality with characteristics of reasonable structure, reliable operation, high efficiency, standardized parts ,convenient maintenance.

After obtaining the certification of IS09001/2000 quality management system, we still adhere to the rigorous work style formed in the turbine industry for many years, constantly and independently improve and perfect the management system of the enterprise, cherish and value the rich experience accumulated in the turbine production for decades, and constantly increase the technical force and Equipment input, focusing on the production, manufacture and installation of hydro-generator set equipment, auxiliary equipment of power station, production and manufacture of over-current components, repair and Capacity Upgrading of various power plant.

Forster always provides technical advice, services and the best technical solutions to customers based on their parameters. At the same time, it keeps offering after sale service for our product.

We always adhere to the principle of honesty and pragmatism, quality first, will be broad-minded, the attitude of life into our work, and strive to create a win-win situation for customers, enterprises and society. In the fierce market competition, we have always adhered to the details of success or failure, focusing on the achievement of excellence in the spirit of enterprise. In the friendly cooperation with customers at home and abroad, we have been pursuing the business philosophy of creating maximum value for customers.
