High Water Head With Valve Control Panel Governor Complete System Water Turgo Turbine Generators For Hydro Power Plant

Our main products included:

1. Kaplan turbine generators series.

2. Turgo turbine generators series.

3. Tubular turbine generators series.

4. Francis turbine generators series.

5. Pelton turbine generators series.

Product features:

When the Turgo turbine is working, the water flows from the pressure water pipe through the nozzle to form a high-speed jet, and the jet and the runner plane impact the rotor blade in a 22.5° direction. After the work is done, the water flows out from the water outlet of the bucket and is discharged downstream along the tailwater channel.
In order to ensure free flow of the jet, the turbine runner must be installed above the water level of the tailrace, and the runner should be no less than 0.5m from the water level of the tailrace.
1. Water energy is converted into mechanical energy
A hydraulic turbine is a machine that converts water energy into mechanical energy. The parameters describing the water energy are head (H meters) and flow rate (Q meters 3 / sec). The operating parameters describing the turbine are head (H meters), flow rate (Q meters 3 / sec), power (N kW), speed (n rev / min) and efficiency (η%).
The water flow hits the vane, and the vane changes the direction of the water flow, that is, the force of the vane feed water. According to the law of action reaction, the water flow gives a reaction force to the vane. This causes the vanes to rotate around the axis, which drives the generator or other processing machinery. This is the process by which water can be converted into mechanical energy.

1. Horizontal unit has the advantages of simple structure,convenient repair,reduce the plant height,advantages in reducing excavation depth.

2. The vertical unit with plant plane size small,a runner can be provided with a plurality of nozzles,(at most can be installed six nozzles),high specific speed,the same size as units of capacity is relatively small,light weight and so on.

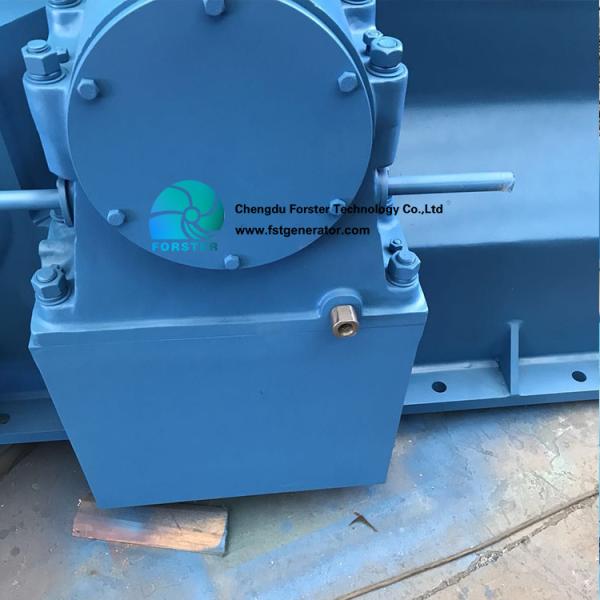

Product pictuers:

Chengdu Forster Technology is focused on design and manufacturing hydro turbines. The company was founded in 1956. Forster is the first Chinese state-owned enterprise and spares no effort to expand international market in 2013，At present, we have obtained orders in many water-rich areas such as Europe, Asia, South America, North America, etc., and as partners, we are qualified as long-term suppliers in many regions.

The capacity of hydro turbines is up to 50KW-30MW for a unit. The main hydro turbines areTurgo turbine ,pelton turbines, francis turbines, kaplan turbines ,bulb tubular turbines and other types of turbines.Foster also supplies governors, valves, transformers, monitoring systems, microcomputer integrated control panels and other equipment for hydroelectric power plants.

Forster is strict to IEC international standard and national standard. It has CE,ISO,TUV,certificate. The hydro turbines have different types, specifications and reliable quality with characteristics of reasonable structure, reliable operation, high efficiency, standardized parts ,convenient maintenance.

After obtaining the certification of IS09001/2000 quality management system, we still adhere to the rigorous work style formed in the turbine industry for many years, constantly and independently improve and perfect the management system of the enterprise, cherish and value the rich experience accumulated in the turbine production for decades, and constantly increase the technical force and Equipment input, focusing on the production, manufacture and installation of hydro-generator set equipment, auxiliary equipment of power station, production and manufacture of over-current components, repair and Capacity Upgrading of various power plant.

Forster always provides technical advice, services and the best technical solutions to customers based on their parameters. At the same time, it keeps offering after sale service for our product.

We always adhere to the principle of honesty and pragmatism, quality first, will be broad-minded, the attitude of life into our work, and strive to create a win-win situation for customers, enterprises and society. In the fierce market competition, we have always adhered to the details of success or failure, focusing on the achievement of excellence in the spirit of enterprise. In the friendly cooperation with customers at home and abroad, we have been pursuing the business philosophy of creating maximum value for customers.
