China Stainless Steel Runner High Water Head Hydroturgo Turbine Generator For Hpp

Our main products included:

1. Kaplan turbine generators series.

2. Turgo turbine generators series.

3. Tubular turbine generators series.

4. Francis turbine generators series.

5. Pelton turbine generators series.

Product features:

When the inclined impact turbine works, water flows through the nozzle from the pressure pipe and forms a high-speed jet. The jet and the plane of the wheel impinges on the blade of the wheel in the direction of 22.5°. The water flows downstream from the blade's edge along the tailpipe.

In order to ensure the free flow of the jet, the turbine runner must be installed above the water level of the tailwater channel, the distance between the runner and the water level of the tailwater channel is no less than 0.5 meters.

1. Water energy is converted into mechanical energy

Water turbine is a machine that converts water energy into mechanical energy. The parameters describing water energy are water head (H meters) and flow (Q meters 3/ s). Describe the turbine working parameters for the head (H), flow m 3 / s (Q), power (N kw), speed (N revolutions per minute) and efficiency (eta %).

The water shoots into the blade, which changes the direction of the water flow. That is, the blade exerts a force on the water flow. According to the law of action and reaction, the water exerts a counter-force on the blade. The conversion of water energy into mechanical energy is the process that causes the blades to rotate around an axis, thus turning a generator or other processing machine.

2. Factors affecting turbine output power

The rated power of a hydraulic turbine refers to the shaft power output by the hydraulic turbine under the rated water head and rated flow. When the actual working water head of the turbine is less than the rated water head proposed by the turbine manufacturer, although the inlet valve is fully open, the turbine power is still less than the rated power, the generator cannot carry the rated load. At this time, such as the generator with nameplate output of the electrical load, the performance of the voltage is insufficient, cycle decline, can not start the motor, electric lights red. The actual output of the turbine can not reach nameplate output. Another kind of situation, the valve is not open enough, or the inlet sewage plug, affect the amount of water into, the same, the turbine can not send the full amount of constant power.

The output power of hydraulic turbine is not only closely related to the size of head and flow, but also to the efficiency of hydraulic turbine. In the process of transforming the energy of water flow into mechanical energy, there are losses in the flow rate and water head, and there are impacts and friction losses in the flow process of the runner, so that the output mechanical energy of the turbine is less than the hydraulic energy. Turbine shaft output power and input turbine water energy (power) ratio, known as turbine efficiency.

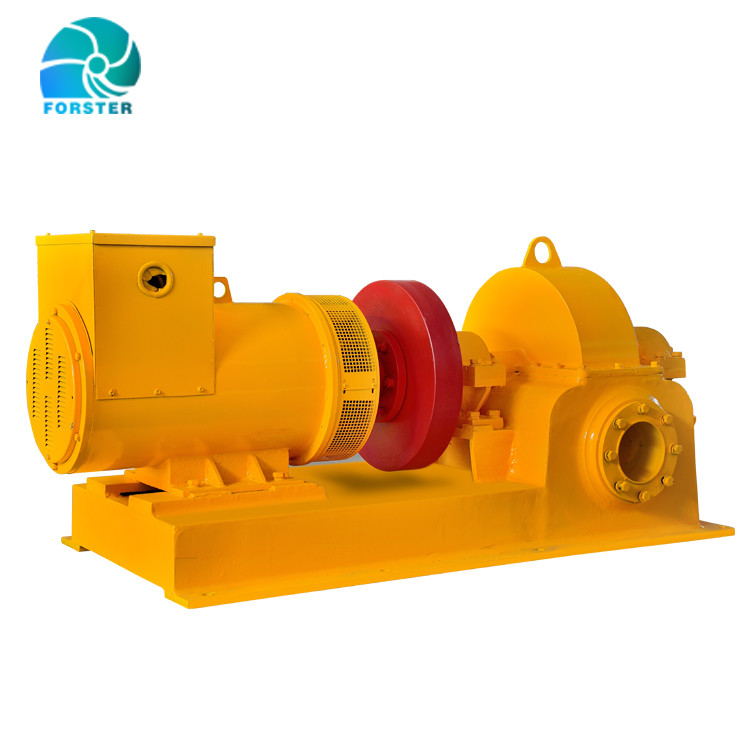

Product pictuers:

Chengdu Forster Technology is focused on design and manufacturing hydro turbines. The company was founded in 1956. Forster is the first Chinese state-owned enterprise and spares no effort to expand international market in 2013，At present, we have obtained orders in many water-rich areas such as Europe, Asia, South America, North America, etc., and as partners, we are qualified as long-term suppliers in many regions.

The capacity of hydro turbines is up to 50KW-30MW for a unit. The main hydro turbines areTurgo turbine ,pelton turbines, francis turbines, kaplan turbines ,bulb tubular turbines and other types of turbines.Foster also supplies governors, valves, transformers, monitoring systems, microcomputer integrated control panels and other equipment for hydroelectric power plants.

Forster is strict to IEC international standard and national standard. It has CE,ISO,TUV,certificate. The hydro turbines have different types, specifications and reliable quality with characteristics of reasonable structure, reliable operation, high efficiency, standardized parts ,convenient maintenance.

After obtaining the certification of IS09001/2000 quality management system, we still adhere to the rigorous work style formed in the turbine industry for many years, constantly and independently improve and perfect the management system of the enterprise, cherish and value the rich experience accumulated in the turbine production for decades, and constantly increase the technical force and Equipment input, focusing on the production, manufacture and installation of hydro-generator set equipment, auxiliary equipment of power station, production and manufacture of over-current components, repair and Capacity Upgrading of various power plant.

Forster always provides technical advice, services and the best technical solutions to customers based on their parameters. At the same time, it keeps offering after sale service for our product.

We always adhere to the principle of honesty and pragmatism, quality first, will be broad-minded, the attitude of life into our work, and strive to create a win-win situation for customers, enterprises and society. In the fierce market competition, we have always adhered to the details of success or failure, focusing on the achievement of excellence in the spirit of enterprise. In the friendly cooperation with customers at home and abroad, we have been pursuing the business philosophy of creating maximum value for customers.
