New Design Automatic Remote Control Of Automatic Switching 300kw
Hydro Tubular Turbine Generators For Hydro Power Plant
Our Main Products Included
1,Kaplan turbine generators series
2,Turgo turbine generators series, e.g. vertical type and
horizontal type.
3,Tubular turbine generators series, e.g. Bulb type and shaft
extension type
4,Francis turbine generators series
5,Pelton turbine generators series and double turbine generators
series and so on.
Specifications
The Bulb tubular turbine generator set is horizontally arranged and
also installed obliquely. The turbine part mainly consists of a
runner chamber, a runner, a vane and a control mechanism, and an
S-shaped draft tube. The runner main shaft is connected to the
power pipe to connect to the power generation. machine. Due to the
large size and high price of the low-speed generator, the
small-sized tubular hydro-generator unit adopts the form of
high-speed generator after gear speed increase.
The shaft-through tubular hydro-generator unit is characterized in
that it has a horizontal or slightly inclined shaft and a generator
located outside the S-shaped passage. The small bulb body only
needs to accommodate the bearing, and the speed increaser is
arranged in the turbine and generates electricity. In the middle of
the machine, the draft tube flow path has two bends in an S shape.
Therefore, its efficiency is not as high as that of vertical shaft
and bulb type.
Product Features
1,Power station from water to water direction is basically the
axial direction penetration.such as bulb turbine hydropower station
of the feed water control and outlet pipe bend, simple shape, the
path of circulation of hydraulic damage reduction,convenient
construction .
2,Tubular turbine has high flow ability and larger specific speed,
so when the head and power are under the same conditions,tubular
turbine diameter is about 10% smaller than Turn to paddle
3,Hydro-power unit structure is compact,compared with the same
specifications of paddle unit,Its size is small,and it can be
decorated in dam body,cancel the complex diversionsystem,reduce the
construction area of factory building,reduce the excavated volume
and the amount of concrete,according to the relevant data
analysis,construction cost can be saved 20%-30%.
4,Tubular turbine work for reversible pump turbine running, due to
the in and out of the water without a sharp turn working condition
of pump and the turbine can get a better hydraulic performance.Such
as tidal power station can be two way with applications in power
generation,pumping,drainage and other three kinds of
functions.Therefore,it is suitable for comprehensive exploitation
and utilization of low head hydraulic resource.
5,Hydro-power is short in construction period, and results fast
generally than vertical axial-flow hydro-power station .
6,The Tubular Turbine is a new type of unit that develops low head
hydraulic resources and is suitable for heads below 25m. The flow
path of the model is linear, and is a horizontal-axis hydraulic
turbine. The shape of the runner is similar to that of the axial
flow type, and there are also fixed and rotary propellers. Since
the water flow moves substantially in the axial direction without
turning in the flow passage, Larger improvements in the unit's
water capacity and hydraulic efficiency.
Product Parameters
| T03-60 Turbular turbine performance data and supporting table |
| Model | Turbine Parameters | Generator Parameters | Driving mode | Speed Way | Water Intake |
| Design head(m) | Under the design head | Design speed (r/min) | The power of generator | Rated speed(r/min) | Vavel control | Guide vane control | Diameter (mm) |
| Flow rate (m3/s) | The output(kw) |
| T03-60 | 9 | 2.16 | 158 | 750 | 155 | 750 | Direct connection | | | 800 |
| 9.5 | 2.22 | 172 | 771 | 170 | 750 | | | | |
| 10 | 2.28 | 185 | 791 | 180 | 750 | | | | |
| 10.5 | 2.33 | 199 | 810 | 200 | 750 | | | | |
| 11 | 2.39 | 214 | 829 | 210 | 750 | | | | |
| 11.5 | 2.44 | 229 | 848 | 230 | 750 | | | | |
| 12 | 2.49 | 244 | 866 | 240 | 750 | | | | |
| 12.5 | 2.55 | 259 | 884 | 255 | 750 | Direct connection | | | |
| 13 | 2.6 | 275 | 901 | 275 | 1000 | | | | |
| 13.5 | 2.65 | 291 | 919 | 290 | 1000 | | | | |
| 14 | 2.69 | 307 | 935 | 300 | 1000 | | | | |
| 14.5 | 2.74 | 324 | 952 | 320 | 1000 | | | | |
| 15 | 2.79 | 341 | 968 | 340 | 1000 | | | | |
| 15.5 | 2.83 | 358 | 984 | 350 | 1000 | | | | |
| 16 | 2.88 | 375 | 1000 | 375 | 1000 | | | | |

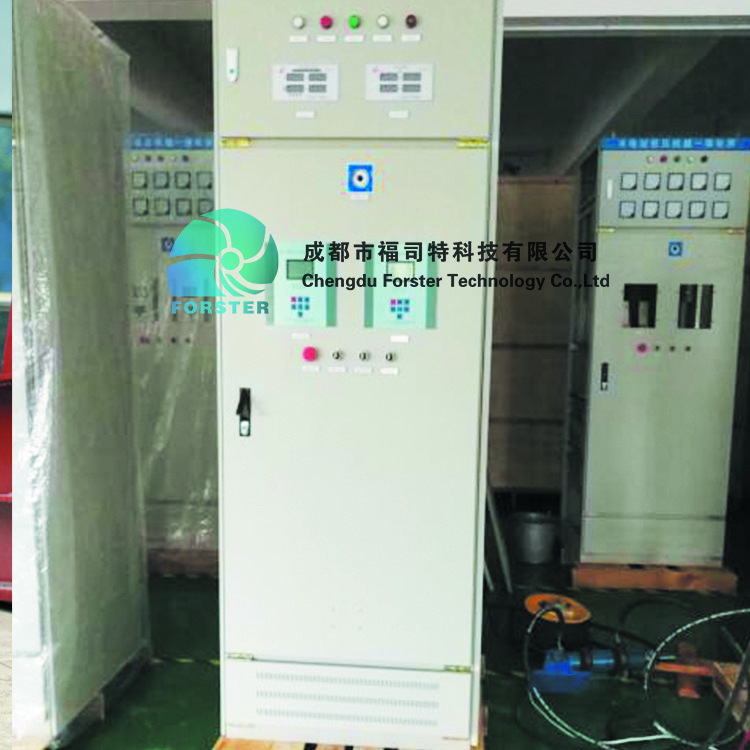

Product Pictures
FAQ
Q1, Which turbine should I choose?
Please tell me the water head, flow rate, frequency, Total power
you need
, voltage, on grid or off grid operation, we will propose a
solution.
Q2, Can your factory provide all the equipment for hydropower
generation?
Yes, we can provide you with turbines, hydro-generators, pressure
regulators, turbine wheels, control panels, transformers,
monitoring systems and more.
Q3, Can you do EPC for a hydroelectric power plant?
Yes, we can provide TURN-KEY and EPC services including
measurement, design, manufacturing, construction, manufacturing,
commissioning, inspection, maintenance runner replacement and
refurbishment/upgrade/improvement/repair/refurbishment of
turbines/generators including bearings, seals For parts and key
parts, we will send technicians and workers to install equipment.
Q4,Is your company a trading company or a manufacturer?
We are a manufacturer of hydro turbine generators and started to
promote the international market in 2013. Our factory is located in
Sichuan, where China's water conservancy and hydropower is most
developed. Welcome to visit our factory in China.
Q5, What is an acceptable MOQ?
For this product, our acceptable MOQ is 1 set.
Q6,How long is the delivery time?
Delivery times range from 15 days to 6 months depending on the
model you are purchasing.
